STORAFLEX – 0,6/1 kV

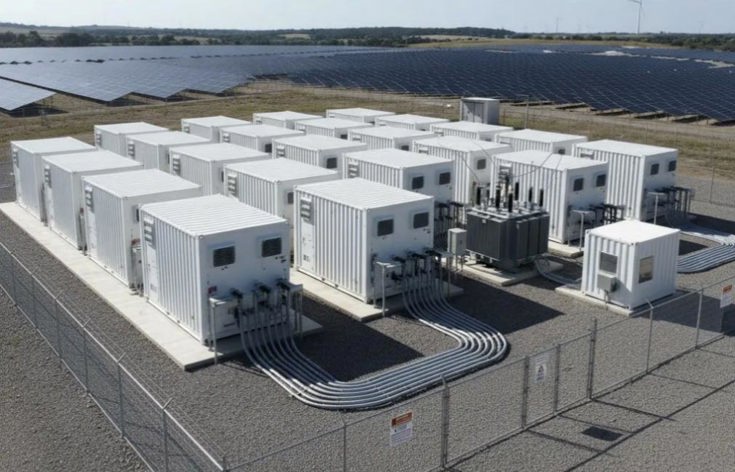

Power cable for battery energy storage systems and grids installations.
It can be buried or installed in a tube as well as outdoors without requiring additional protection and can withstand in damp conditions including total submersion in water (AD8).
Storaflex cables have good Oil and chemical resistance characteristics also excellent resistance to salt mist + chemical vapors
Conductor : Electrolytic annealed flexible bare copper-Class 5 according to IEC 60228
(Class 2 and/or tinned copper available on request.)
Insulation : Hard Grade Ethylene Propylene Rubber, HEPR according to IEC 60502-1
Outer Sheath : Special Halogen Free Flame Retardant HFFR compound according to IEC 60502-1
Sheath Colour : Black (Other colours available upon request)
Rated Voltage (U0/U) : 600 / 1000 V AC
Max Voltage Umax : 1200 V AC
1800 V DC
Test Voltage : 3,5 kV AC
Operating Ambient Temperature : -40°C / +90°C
Lowest Installation Temperature : -125°C
Max. Short Circuit Temperature : +250°C
Bending Radius (fixed installation) : 6 x Outer Diameter at fixed installed
10 x Outer Diameter during installation
DESIGN STANDARDS
Construction : IEC 60502-1
Flame Retardancy : IEC 60332-1-2
Halogen Content : IEC 60754 / 1-2
Smoke Emission : IEC 61034 / 1-2
Ozon Resistance : IEC60811 / 403
UV Resistance : EN 50618
| CABLE TYPE | NUMBER OF CORES |
CROSS SECTIONS mm2
|
OVERALL DIAMETER mm
|
BENDING RADIUS (min.) mm |
APP. WEIGHT kg/km |
MAX. CONDUCTOR RESISTANCE (*) 20oC ohm/km |
| STORAFLEX | 1 | 16 | 9,1 -0,3 /+0,5 | 54,6 | 187 | 1,21 |
| STORAFLEX | 1 | 25 | 10,7 -0,3 /+0,5 | 64,2 | 272 | 0,780 |
| STORAFLEX | 1 | 35 | 12,0 -0,3 /+0,5 | 72,0 | 375 | 0,554 |
| STORAFLEX | 1 | 50 | 13,6 -0,3 /+0,5 | 81,6 | 515 | 0,386 |
| STORAFLEX | 1 | 70 | 15,5 -0,3 /+0,5 | 93,0 | 701 | 0,272 |
| STORAFLEX | 1 | 95 | 17,3 -0,5 /+0,8 | 103,8 | 913 | 0,206 |
| STORAFLEX | 1 | 120 | 19,6 -0,5 /+0,8 | 117,6 | 1.154 | 0,161 |
| STORAFLEX | 1 | 150 | 21,7 -0,5 /+0,8 | 130,2 | 1.406 | 0,129 |
| STORAFLEX | 1 | 185 | 23,9 -0,5 /+0,8 | 143,4 | 1.747 | 0,106 |
| STORAFLEX | 1 | 240 | 27,0 -0,5 /+0,8 | 162,0 | 2.270 | 0,0801 |
