STORAFLEX – 1,8/3 kV

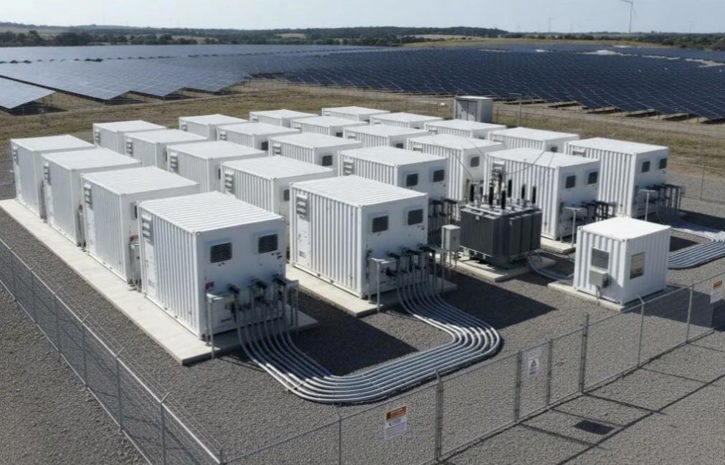

Power cable for battery energy storage systems and grids installations.
It can be buried or installed in a tube as well as outdoors without requiring additional protection and can withstand in damp conditions including total submersion in water (AD8).
Storaflex cables have good Oil and chemical resistance characteristics also excellent resistance to salt mist + chemical vapors.
Power cable for battery energy storage systems and grids installations.
It can be buried or installed in a tube as well as outdoors without requiring additional protection and can withstand in damp conditions including total submersion in water (AD8).
Storaflex cables have good Oil and chemical resistance characteristics also excellent resistance to salt mist + chemical vapors.
Conductor : Electrolytic annealed flexible bare copper-Class 5 according to IEC 60228
(Class 2 and/or tinned copper available on request.)
Insulation : Hard Grade Ethylene Propylene Rubber, HEPR according to IEC 60502-1
Outer Sheath : Special Halogen Free Flame Retardant HFFR compound according to IEC 60502-1
Sheath Colour : Black (Other colours available upon request)
| CABLE TYPE | NUMBER OF CORES |
CROSS mm2 |
OVERALL mm |
BENDING RADIUS (min.) mm |
APP. WEIGHT kg/km |
MAX. CONDUCTOR RESISTANCE (*) 20oC ohm/km |
| STORAFLEX | 1 | 16 | 11,7 -0,3 /+0,5 | 07,2 | 227 | 1,21 |
| STORAFLEX | 1 | 25 | 12,9 -0,3 /+0,5 | 77,4 | 309 | 0,780 |
| STORAFLEX | 1 | 35 | 14,1 -0,3 /+0,5 | 84,6 | 415 | 0,554 |
| STORAFLEX | 1 | 50 | 15,6 -0,3 /+0,5 | 93,6 | 556 | 0,386 |
| STORAFLEX | 1 | 70 | 17,5 -0,3 /+0,5 | 105,0 | 749 | 0,272 |
| STORAFLEX | 1 | 95 | 19,1 -0,5 /+0,8 | 114,6 | 958 | 0,206 |
| STORAFLEX | 1 | 120 | 21,5 -0,5 /+0,8 | 129,0 | 1.206 | 0,161 |
| STORAFLEX | 1 | 150 | 23,0 -0,5 /+0,8 | 138,0 | 1.440 | 0,129 |
| STORAFLEX | 1 | 185 | 25,0 -0,5 /+0,8 | 150,0 | 1.780 | 0,106 |
| STORAFLEX | 1 | 240 | 27,9 -0,5 /+0,8 | 167,4 | 2.297 | 0,0801 |
